DTS LSP Integration

This page explains how Zephyr Workbench integrates with the DeviceTree Language Server by Kyle Bonnici(DTS-LSP), what it does for you, and what to expect when working with .dts and .overlay files.

Overview​

  • Provides on-the-fly DTS language features (go-to, hover, diagnostics, formatting) by talking to the external dts-lsp VS Code extension.
  • Automatically creates and selects DTS contexts based on the file you open:
    • Application overlays (.overlay) use the app build directory’s build_info.yml to derive include paths, bindings, the main dtsFile, overlays, and compile commands.
    • Workspace DeviceTree files (.dts in the Zephyr tree) use the Zephyr kernel tree to derive include and bindings paths.
  • Keeps contexts in sync as files change and removes them when files close or are deleted.

How It Works​

  • On activation, the integration locates and activates the dts-lsp extension API.
  • It sets default server settings:
    • allowAdhocContexts: false (prevents server from creating implicit contexts)
    • defaultShowFormattingErrorAsDiagnostics: false (reduces noise from formatting diagnostics)
  • It listens to editor events and updates contexts as you open or focus .overlay or .dts files.

Application Overlay Contexts (*.overlay)​

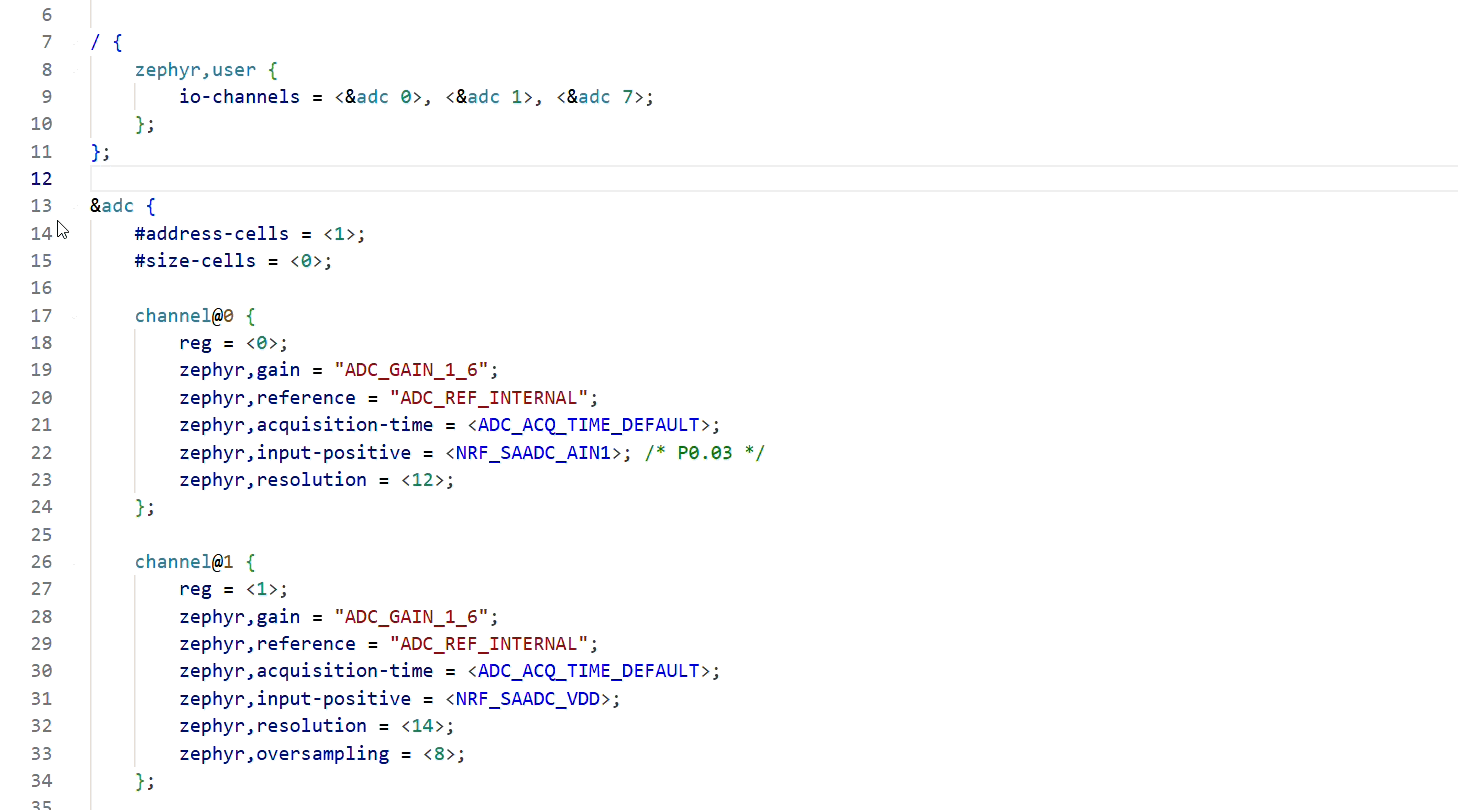

DTS-LSP-Overlays

When an overlay is opened:

  1. The extension finds the parent Zephyr application folder and its active (or first) build configuration.
  2. It parses <build_dir>/build_info.yml to collect:
    • include-dirs, bindings-dirs, files, user-files and compile_commands.json.
  3. It builds a DTS context payload and requests/activates it on the DTS server.
  4. If build_info.yml changes, the extension removes the existing context first, then recreates it to avoid stale state.

What to expect

  • The correct app DTS roots and bindings are used, including overlays and the main dtsFile.
  • Formatting errors are not shown as diagnostics by default for a calmer experience.

Workspace DTS Contexts (zephyr/**/*.dts)​

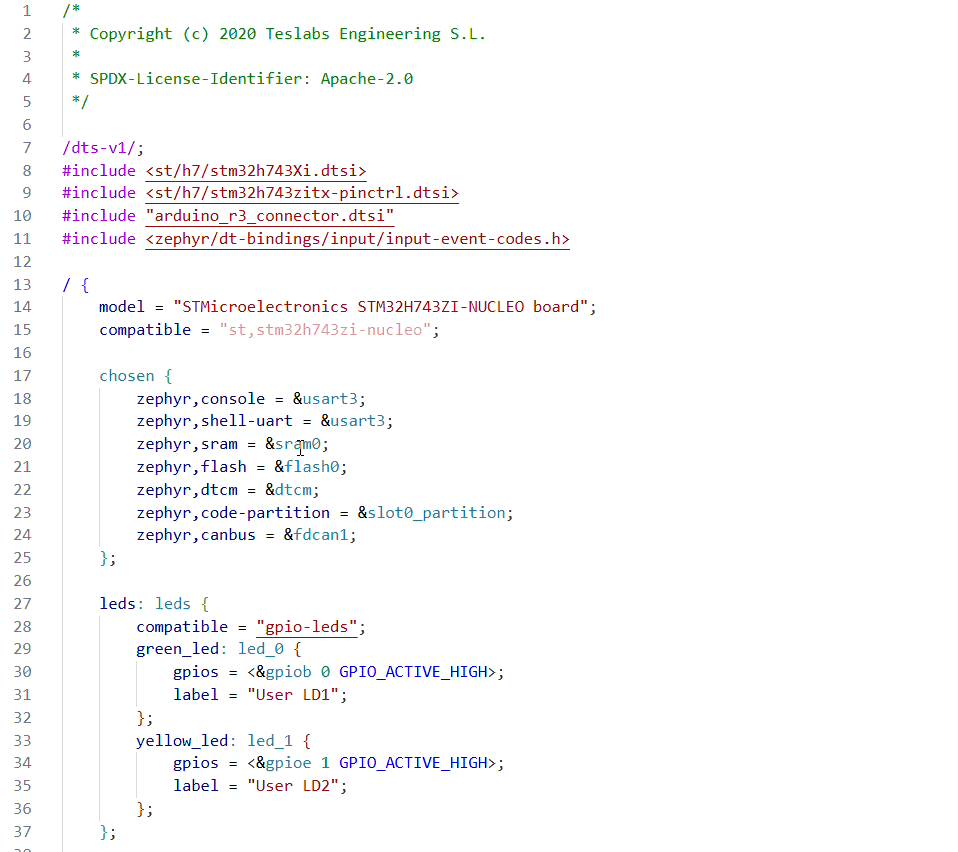

DTS-LSP-Overlays

When a DTS file inside the Zephyr tree is opened:

  1. The extension detects the containing west workspace and Zephyr kernel directory.
  2. It constructs include paths from zephyr/include, zephyr/include/zephyr, zephyr/dts and common DTS subfolders.
  3. It adds zephyr/dts/bindings for bindings.
  4. Vendor HAL roots: the workspace context unconditionally appends several vendor HAL roots found under modules/hal (sibling of zephyr). The integration keeps only those that actually exist on disk:
    • modules/hal/adi
    • modules/hal/atmel
    • modules/hal/microchip
    • modules/hal/nuvoton
    • modules/hal/gigadevice
    • modules/hal/stm32
    • modules/hal/nxp
    • modules/hal/espressif

What to expect

  • The current .dts file is treated as the dtsFile of the context.
  • Include paths cover Zephyr core DTS folders plus the detected modules/hal/... vendor roots present in your workspace.
  • Bindings are sourced from zephyr/dts/bindings when present.
  • Contexts are recreated only when their meaningful signature changes (include paths, bindings, dtsFile, overlays, compile commands), minimizing churn.

Working With .dtsi Files​

  • .dtsi include files do not create their own full context. For include resolution and language features to work, keep the related parent .dts file open so its DTS context remains active in the environment.

Known Limitations / TODOs​

  • Vendor module detection is hard-coded. A future version should parse west.yml and each zephyr/module.yml to auto-discover dts_root entries.
  • .dtsi files are intentionally skipped; the server relies on their parent .dts context.
  • For custom DTS-LSP configuration, you can always configure it manually inside settings.json as mentioned in usage guide.

Troubleshooting​

  • Ensure the KyleMicallefBonnici.dts-lsp extension is installed and enabled.
  • If overlays don’t resolve correctly, run a build to ensure build_info.yml and compile_commands.json exist.
  • If contexts appear stale after changing build_info.yml, the integration removes and recreates the context automatically. If issues persist, close and reopen the file.
  • Restart VSCode
