Installation

Requirements​

  • Visual Studio Code
  • Windows: nothing to install beforehand. All tools are downloaded automatically as portable versions.
  • Linux: Bash and your distribution's package manager. Some packages are installed with sudo, so administrator rights are required.
  • macOS: Bash and Homebrew. Homebrew is mandatory: without it, the host tools installation stops with the error "Homebrew is not installed. Install it from https://brew.sh, then retry."

Install the extension​

  1. Open Visual Studio Code and go to the Extension Marketplace.
  2. Search for the "Workbench for Zephyr" extension.
  3. Click Install.

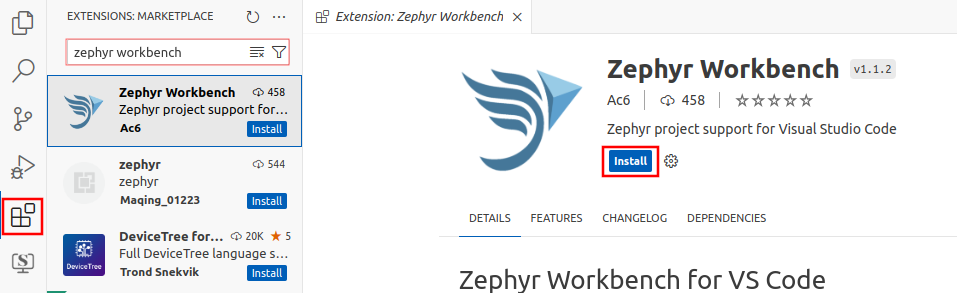

Install from Marketplace

Companion extensions​

Installing Workbench for Zephyr automatically installs a few companion extensions:

  • Devicetree Manager for Zephyr (Ac6): visual editor for the devicetree and pin muxing of your application.
  • Serial Monitor (Microsoft): view the serial output of your board.
  • C/C++ (Microsoft): IntelliSense and debugging support for C and C++ code.
  • Cortex-Debug: debug backend for ARM Cortex-M targets.
  • File Downloader (Microsoft DevLabs): used internally to download tools.
  • DeviceTree Language Server (by Kyle Bonnici): language features for .dts and .overlay files (see DTS LSP Integration).

Host Tools Installation​

Zephyr requires several host dependencies (CMake, Ninja, Python, and more). Workbench for Zephyr installs them for you:

  1. Open the Workbench for Zephyr tab in the activity bar.
  2. Click Install Host Tools.

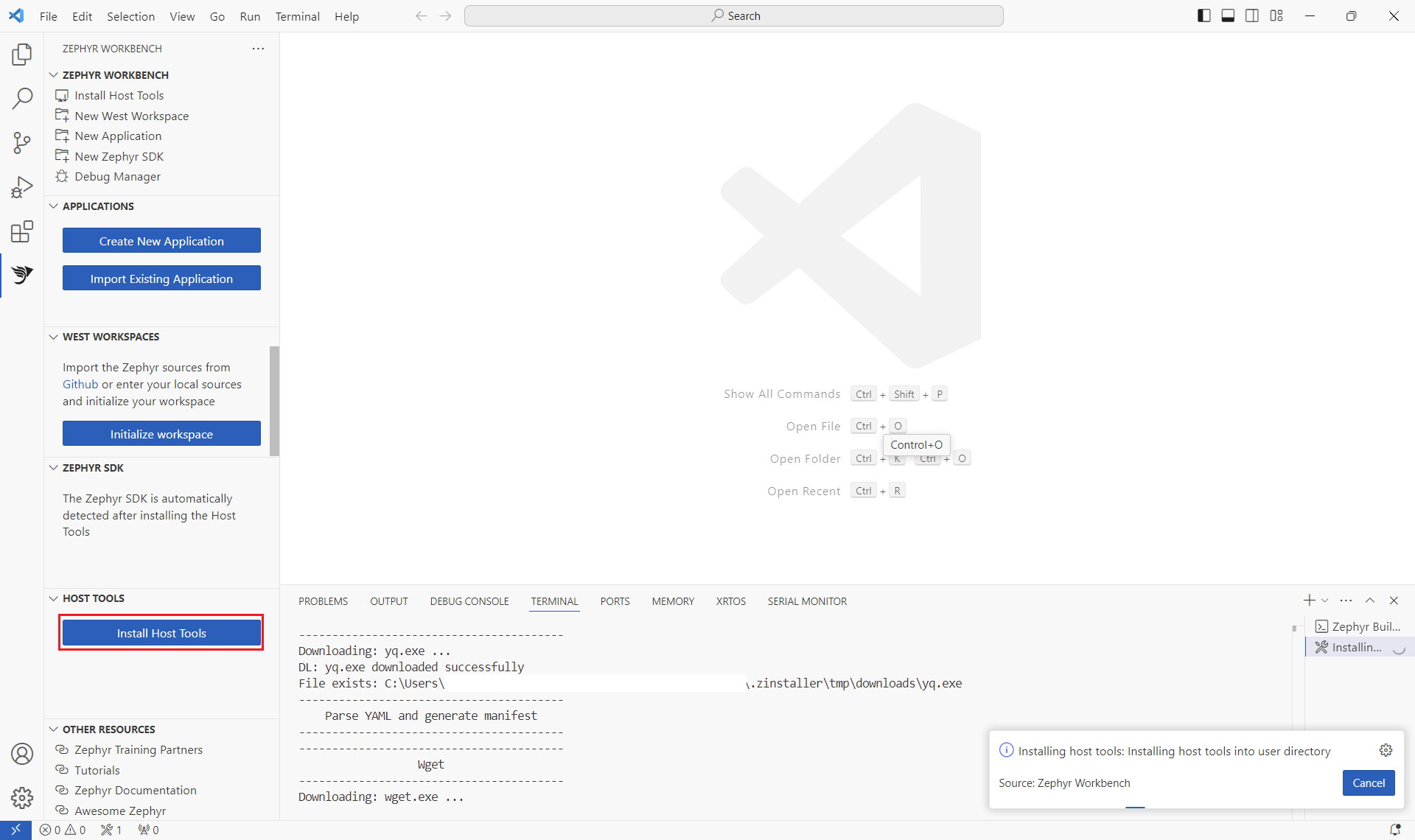

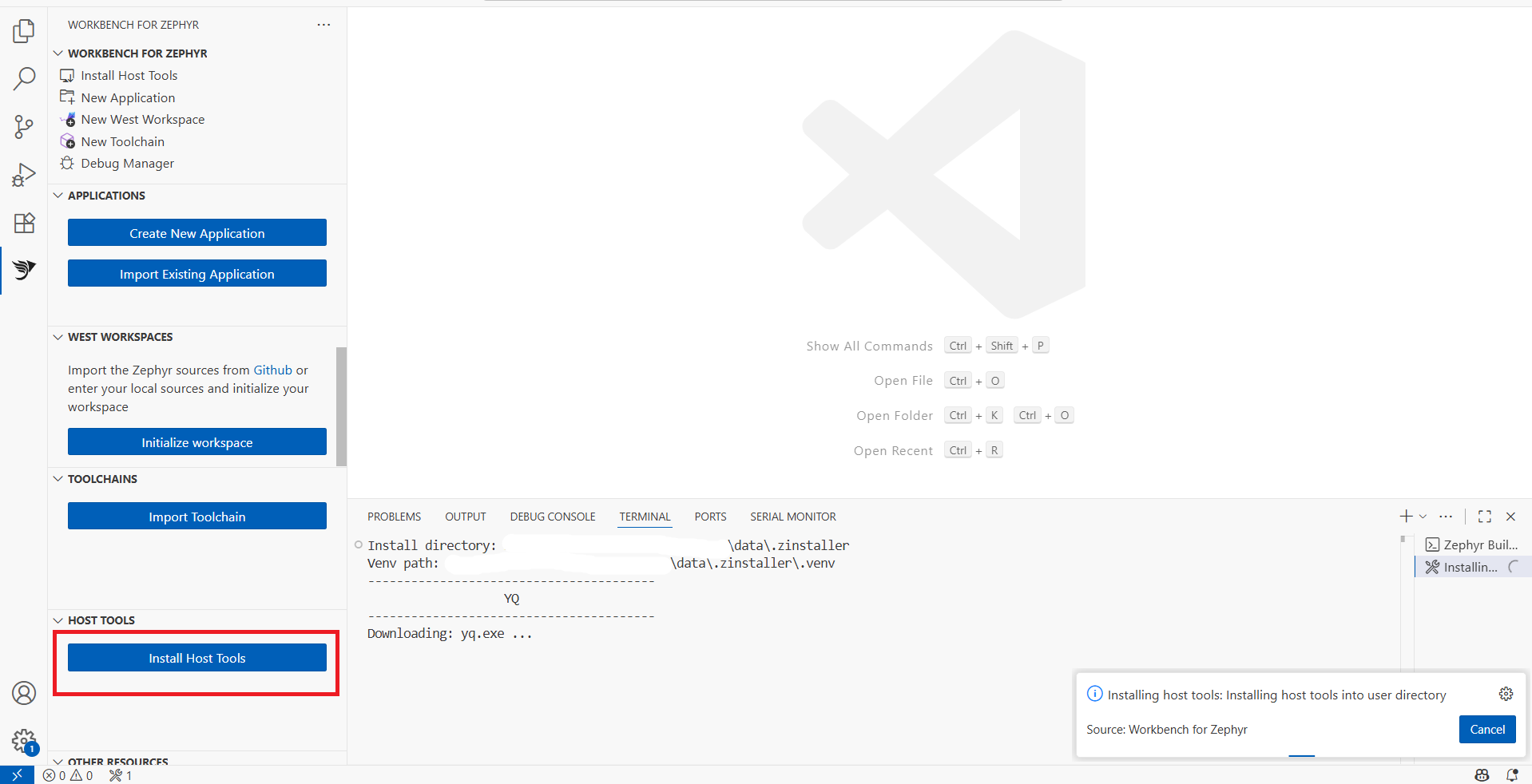

Install host tools

The installation takes several minutes and runs in a terminal. A progress notification is shown, and you can cancel it at any time.

What gets installed depends on your OS:

  • Windows: portable versions of Python, CMake, Ninja, gperf, Device Tree Compiler, Git, and wget, all placed in the .zinstaller folder.
  • Linux: Python (portable AppImage), CMake, and Ninja are direct downloads. The remaining dependencies (git, gperf, dtc, gcc, make, ccache, dfu-util, wget, xz, file, SDL2, hidapi, libmagic, unzip, python3 support packages) are installed with your distribution's package manager. You will be asked for your sudo password.
  • macOS: everything installs through Homebrew: Python, CMake, Ninja, gperf, Device Tree Compiler, Git, plus utilities (ccache, libmagic, wget, yq, xz, dfu-util, libftdi, hidapi).

For more information about the Zephyr dependencies, refer to the Zephyr documentation.

tip

Prefer to skip tools you already have, pick which Python is used, or repair a single tool? Use the Advanced Host Tools Installation instead. After installation, the Host Tools Manager lets you verify the tools and switch each one between the bundled and the system version.

note

The portable tools are installed under $USERDIR/.zinstaller, or under $VSCODE_PORTABLE/.zinstaller if you are using VS Code in portable mode.

Uninstalling Workbench for Zephyr does not uninstall the host tools. You can manually delete the .zinstaller folder.

After the installation​

Once the host tools are installed, Workbench for Zephyr automatically installs the OpenOCD runner and sets it as the default. A message then proposes to install additional runners: click Install Runners to open the runners page.

Runners are the debug servers and flashing tools used to program and debug your board (J-Link, STM32CubeProgrammer, pyOCD, and more). Depending on your hardware, you may also need the driver of your JTAG probe. See Install Runners to install what your board needs.
